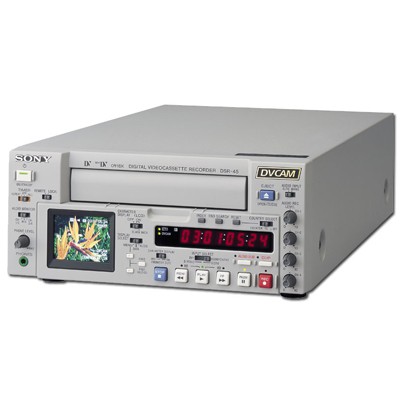

SONY VTRS DVCam DSR-45P
SONY VTRS DVCam DSR-45P
Sony DSR-45P - With 2 Yr Sony Silver Support. DVCAM / DV(SP) recording & playback ensures perfect compatibility
While the DVCAM format delivers superior A/V performance and reliability for professional use, when you need to record and playback in DV(SP) format, the DSR-45P offers you this choice too.
LCD monitor lets you check as you go
You can use the high resolution built-in LCD colour monitor to view the image as it records, or to check the playback picture on the location. It also makes setting menus and audio recording levels easier.
One machine, many ways of using it
If your need is versatility, the DSR-45P is your solution. Use it as the editing player in an A/B roll or a cut editing system. Or, use it with your conventional analogue system.
Compact and lightweight
The DSR-45P is both compact and lightweight, weighing just 4.6kg. Only a half-rack wide, two units can be mounted side-by-side in a 19-inch equipment rack.
i.LINK interface
The integrated i.LINK interface allows you to transfer digital audio and video through a single-cable connection with virtually no loss in quality. This provides an easy and convenient way to make back-up tapes.
Signal conversion
Analogue input signals can be converted to digital and simultaneously output from the i.LINK connector. Also, it can convert i.LINK input signal to analogue signals.
While the DVCAM format delivers superior A/V performance and reliability for professional use, when you need to record and playback in DV(SP) format, the DSR-45P offers you this choice too.
LCD monitor lets you check as you go
You can use the high resolution built-in LCD colour monitor to view the image as it records, or to check the playback picture on the location. It also makes setting menus and audio recording levels easier.
One machine, many ways of using it
If your need is versatility, the DSR-45P is your solution. Use it as the editing player in an A/B roll or a cut editing system. Or, use it with your conventional analogue system.
Compact and lightweight
The DSR-45P is both compact and lightweight, weighing just 4.6kg. Only a half-rack wide, two units can be mounted side-by-side in a 19-inch equipment rack.
i.LINK interface
The integrated i.LINK interface allows you to transfer digital audio and video through a single-cable connection with virtually no loss in quality. This provides an easy and convenient way to make back-up tapes.
Signal conversion
Analogue input signals can be converted to digital and simultaneously output from the i.LINK connector. Also, it can convert i.LINK input signal to analogue signals.
Features:
DV format recording and playback
With your DSR-45P you can record and play back DV format tapes (SP mode only) as well as DVCAM format. In DV format the DSR-45P offers 270 minutes of recording with standard-size cassette.
i.LINK interface
Using the integrated 4-pin i.LINK interface you can duplicate entire tapes and transfer audio, video and command signals to a PC.
Analogue video/audio interface
The DSR-45P provides a full range of analogue video inputs/outputs, including composite, S-Video and component, plus 4-channel separate XLR connectors for analogue audio output. This makes it easy to integrate the DSR-45P into an existing analogue-based system.
RS-422A & RS-232C interface
The Sony DSR-45P is equipped with RS-422A interface, which allows it to perform as a source feeder in professional A/B roll editing systems. Also RS-232C interface allows basic VTR functions to be controlled from a PC.
Timecode input/output
The DSR-45P is equipped with time code input/output capability, enabling time code synchronization with external equipment, which is ideal for dubbing purposes.
Timecode write through i.LINK
The DSR-45P can copy time code from a non-tape source through i.LINK. This is useful when video is edited on a PC or other NLE system has new timecode.
Colour bar generator and Tape counter
The DSR-45P has a colour bar generator that can be activated from the set-up menu. In addition, the system comes with a digital tape counter on the front panel, which is convenient for performing relative time code data editing, and for monitoring the operation of the unit.
Wireless remote commander supplied
The DSR-45P comes with a wireless remote commander, RMT-DS5, which provides menu control for precise settings. Most of the VCR's functions can be controlled from the commander, making it ideal for use during presentations.
With your DSR-45P you can record and play back DV format tapes (SP mode only) as well as DVCAM format. In DV format the DSR-45P offers 270 minutes of recording with standard-size cassette.
i.LINK interface
Using the integrated 4-pin i.LINK interface you can duplicate entire tapes and transfer audio, video and command signals to a PC.
Analogue video/audio interface
The DSR-45P provides a full range of analogue video inputs/outputs, including composite, S-Video and component, plus 4-channel separate XLR connectors for analogue audio output. This makes it easy to integrate the DSR-45P into an existing analogue-based system.
RS-422A & RS-232C interface
The Sony DSR-45P is equipped with RS-422A interface, which allows it to perform as a source feeder in professional A/B roll editing systems. Also RS-232C interface allows basic VTR functions to be controlled from a PC.
Timecode input/output
The DSR-45P is equipped with time code input/output capability, enabling time code synchronization with external equipment, which is ideal for dubbing purposes.
Timecode write through i.LINK
The DSR-45P can copy time code from a non-tape source through i.LINK. This is useful when video is edited on a PC or other NLE system has new timecode.
Colour bar generator and Tape counter
The DSR-45P has a colour bar generator that can be activated from the set-up menu. In addition, the system comes with a digital tape counter on the front panel, which is convenient for performing relative time code data editing, and for monitoring the operation of the unit.
Wireless remote commander supplied
The DSR-45P comes with a wireless remote commander, RMT-DS5, which provides menu control for precise settings. Most of the VCR's functions can be controlled from the commander, making it ideal for use during presentations.
Technical Specifications
Power Requirements: AC 100-240 V, 50/60 Hz
Weight: 4.6 kg
Dimensions(WxHxD): 212 x 98 x 392.8 mm
Power Consumption: 22W
Tape Speed: Approx. 28.2 mm/sec.(DVCAM mode)
Video System: 625/50 (PAL)
Colour LCD monitor: 2-inch type, 123,200 dots
Video Input
Composite: BNC x1, 1.0 Vp-p, 75 ohm. Sync negative
Component: BNC x3, Y: 1.0 Vp-p, 75 ohm, Sync negative, R-Y: 0.7 Vp-p, 75 ohm (100%), B-Y: 0.7 Vp-p, 75 ohm (100%)
S-Video: DIN 4-pin x1, Y: 1.0 Vp-p, 75 ohm, Sync negative, C: 0.3 Vp-p (subcarrier burst), 75 ohm
Video Output
Composite: BNC x1, 1.0 Vp-p, 75 ohm. Sync negative
Component: BNC x3, Y: 1.0 Vp-p, 75 ohm, Sync negative, R-Y: 0.7 Vp-p, 75 ohm (100%), B-Y: 0.7 Vp-p, 75 ohm (100%)
S-Video: DIN 4-pin x1, Y: 1.0 Vp-p, 75 ohm, Sync negative, C: 0.3 Vp-p (subcarrier burst), 75 ohm
Weight: 4.6 kg
Dimensions(WxHxD): 212 x 98 x 392.8 mm
Power Consumption: 22W
Tape Speed: Approx. 28.2 mm/sec.(DVCAM mode)
Video System: 625/50 (PAL)
Colour LCD monitor: 2-inch type, 123,200 dots
Video Input
Composite: BNC x1, 1.0 Vp-p, 75 ohm. Sync negative
Component: BNC x3, Y: 1.0 Vp-p, 75 ohm, Sync negative, R-Y: 0.7 Vp-p, 75 ohm (100%), B-Y: 0.7 Vp-p, 75 ohm (100%)
S-Video: DIN 4-pin x1, Y: 1.0 Vp-p, 75 ohm, Sync negative, C: 0.3 Vp-p (subcarrier burst), 75 ohm
Video Output
Composite: BNC x1, 1.0 Vp-p, 75 ohm. Sync negative
Component: BNC x3, Y: 1.0 Vp-p, 75 ohm, Sync negative, R-Y: 0.7 Vp-p, 75 ohm (100%), B-Y: 0.7 Vp-p, 75 ohm (100%)
S-Video: DIN 4-pin x1, Y: 1.0 Vp-p, 75 ohm, Sync negative, C: 0.3 Vp-p (subcarrier burst), 75 ohm
Audio Input
Phono jacks (x4), -10/-2/+4 dBu (full bit -18dB)
Audio Output
Line: XLR 3-pin male (x4), +4 dBu
Monitor: Phono jack (x1), monaural
Headphone: Stereo mini headphone jack (x1)
Digital IN/OUT: DV IN/OUT, IEEE1394 based, 4 pin x 1
RS-232C: D-sub 9-pin x1, male
RS-422A: D-sub 9-pin x1, female
LANC: Stereo mini jack x1
Control S: Stereo mini jack IN x1
Audio Output
Line: XLR 3-pin male (x4), +4 dBu
Monitor: Phono jack (x1), monaural
Headphone: Stereo mini headphone jack (x1)
Digital IN/OUT: DV IN/OUT, IEEE1394 based, 4 pin x 1
RS-232C: D-sub 9-pin x1, male
RS-422A: D-sub 9-pin x1, female
LANC: Stereo mini jack x1
Control S: Stereo mini jack IN x1
